Scanner Hinge / Support Arm — The scanner hinge carries the ADF and scanner cover and holds it aligned through the travel. Replace it when the housing cracks or the cover no longer closes flat — a cracked hinge skews every scan.

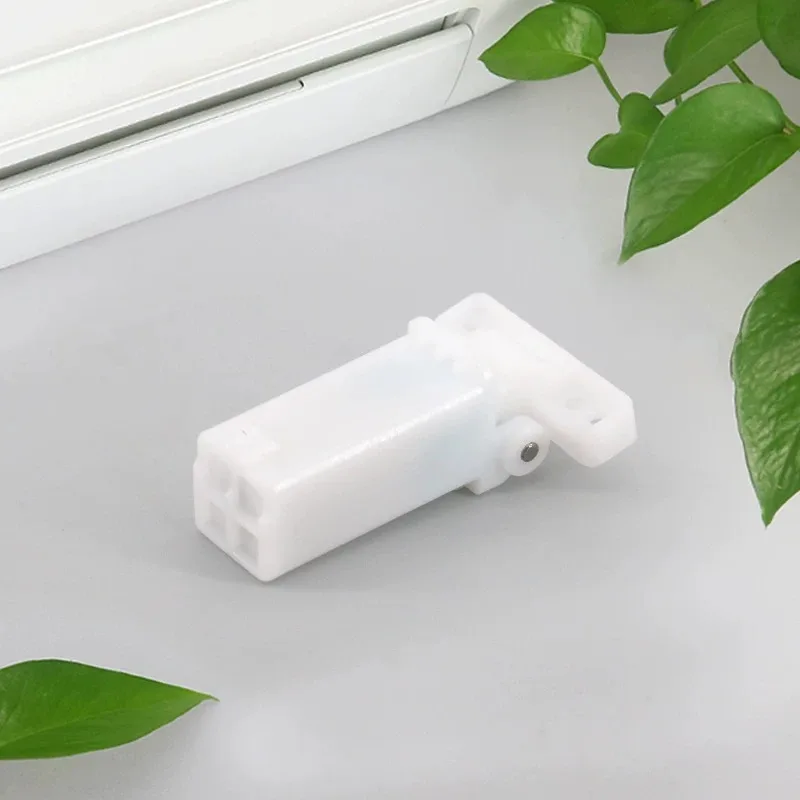

This scanner hinge (document feeder support arm) supports the scanner cover and ADF unit. It fixes broken hinges and cover closure issues.
For Aurora AD220MNW Scanner Hinge / Support Arm fits Aurora AD220MNW, AD229MWC, AD229MA, AD229MNA and 3 more listed below. Not suitable for: Housings already distorted by a previous breakage — check the mounting bosses before ordering only the hinge. Match the part number to your machine before ordering.
Updated: 2026-09-26 · Technical review for scanner hinge / support arms
| Parameter | Value | Condition / method |
|---|---|---|
| Body material | Glass-filled POM or ABS | Material spec sheet |
| Pivot | Steel pin, OE-matched diameter | Vernier caliper |
| Travel | Matches OE opening angle | Fitment check on host machine |
| Load rating | Carries the ADF unit through full travel | Cycle test on host machine |
| Compliance | RoHS / REACH | Supplier declaration per batch |
| Printer model | Status |
|---|---|
| Aurora AD220MNW | Verified fitment |
| AD229MWC | Verified fitment |
| AD229MA | Verified fitment |
| AD229MNA | Verified fitment |
| Konica Minolta bizhub 2280MF | Verified fitment |
| 2202MF | Verified fitment |
| 2282MF | Verified fitment |
If your machine is not listed, send us the model and a photo of the original part — parts that look alike within the same family are frequently not interchangeable.
| Symptom | Mechanism |
|---|---|
| Cover will not stay open or drops shut | Detent or pivot is worn |
| Scanned pages come out skewed | Hinge no longer holds the cover parallel |
| Visible crack near the pivot boss | Fatigue failure — it will break completely soon |
| ADF feeds at an angle | Cover alignment has shifted |
Support the cover before releasing the hinge — it is spring-loaded on most models and will snap shut. Transfer the spring and any shim washers to the new part in the same order.
Q: Is the spring included?
A: The hinge body is supplied; springs and shims are usually reused. Tell us if you need them and we will quote them together.
Q: What is the MOQ?
A: 200 pcs per part number.
Q: Do you offer a reinforced version?
A: For high-failure models, yes — ask which part numbers have a reinforced revision in stock.
Send your enquiry — quote within 12 hours
Hinges fail most often on machines where the cover is opened many times a day, and on models where the ADF is heavy relative to the hinge size. If yours has already cracked once, fit a reinforced revision if one exists rather than an identical replacement.
Adhesive repair occasionally holds on a hairline crack, but the pivot boss carries the whole cover load. Once it cracks, a bonded joint rarely survives a few thousand open-and-close cycles.
Yes. We ship by sea, air and express to North America, Europe, South America, the Middle East and South-East Asia, and we handle export documentation. Send the destination port or airport and the quantity, and we will quote FOB, CIF or DDP as you prefer.
Parts are warranted against manufacturing defects and are bench-tested on the host machine type before packing. Fitment-related claims need the part reported before installation. Send us the part number and quantity and we will state the exact term for that item in writing.
Stock items ship in 15–30 days; new tooling takes 30–45 days. We ship by sea, air and express under FOB, CIF or DDP Incoterms, and payment is T/T or L/C at sight. Give us the destination port and quantity for a firm schedule.
Yes. Custom logo, printed polybag, blister or retail box are all available, and we can tool new compounds or geometries from a drawing or sample. Minimum quantities for custom work are higher than for stock parts — send the specification and we will quote both.
